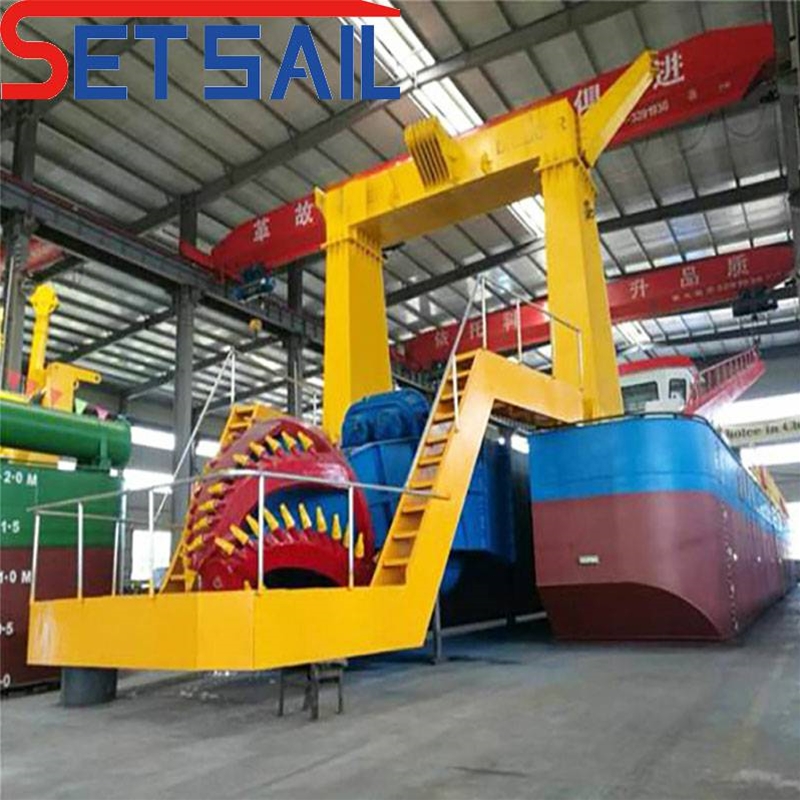

Large size cutter suction dredger
Details：
| Item | Parameter | Remark |
| Dredging depth | 18m | Add undereater pump can reach the 30meter |
| Solid capacity | 1800m3 | According to 20% concentration to count |
| Discharge distance | 2000m | Add the booster station can reach the long distance transportation |
| Load draft | 1.6m | |
| Total weight | 380t | |
| Toal length | 46m | |
| Total width | 10.2m | |
| Total depth | 2.7m | it means the dimension is from bottom to the deck |
| Bottom plate thickness | 14mm | CCS Standard |
| Front and back plate thickness | 20mm | |
| Side plate thickness | 12mm | |
| Deck plate thickness | 12mm | |
| Pump brand | Shijiazhuang industrial pump factory | According to the customer's request to choose the brand |
| Water flow | 9000m3 | we can do the over 20000m3 cutter suction dredger |
| Head | 57m | |
| Rotate speed | 400r/m | |
| Efficiency | 81.50% | |
| Suction /Discharge pipe diameter | 800mm | Diameter is not changeless according to the anthentic situation to choice . |
| Main engien brand and power | Cummins 1950kw | Can provide CAT .Weichai so on diesel engine brand |
| Rotate speed | 1900r | Rotate speed is adjustable |
| Auxiliary diesle engine and brand | Cummins 700kw | Can provide CAT .Weichai so on diesel engine brand |
| Driving Pump and hydraulic system gerbox Brand | Hangzhou Fada | |
| Sup diameter *wall thickness | 860mm*25mm | |
| Weight | 26ton | |
| Lifting winch first layer pull | 200KN | |
| Wire rope diameter | 28mm | |
| Swing winch first layer pull | 150KN | |
| Wire rope diameter | 26mm | |
| Anchor boom length | 18m | |
| Spud carriage stroke | 6m-8m | |
| Spund carriage pontoon length | 12m |
