Details：
PTCSD-550

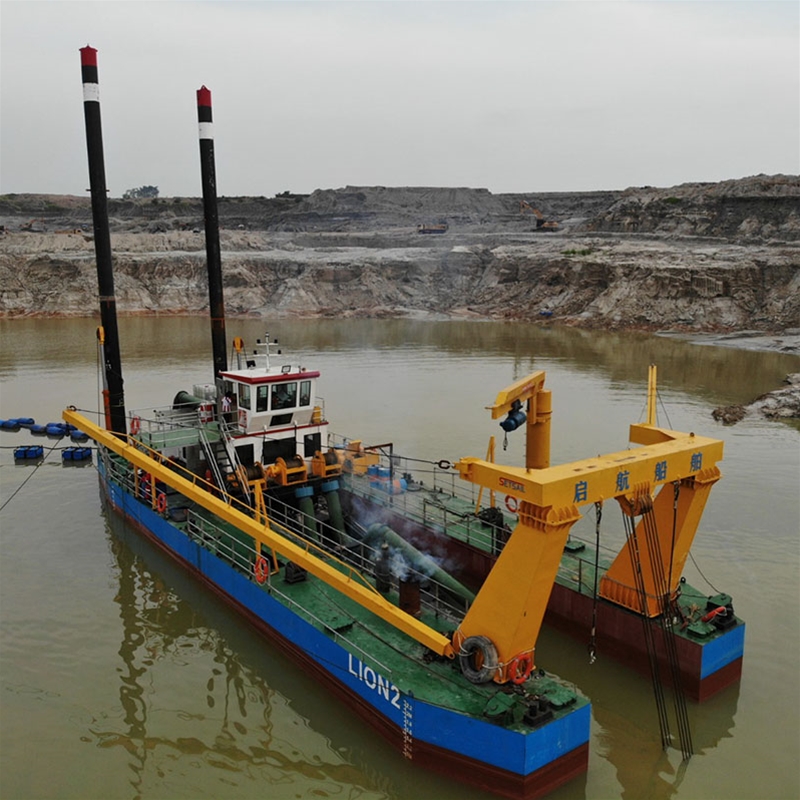

| cutter suction dredger is widely used for river lake port and inside waterways etc . cutter suction dredger can process sand mud gravel from all kinds of dredging project . cutter suction dredger adopts good quality device to achieve the highest performance .let the customer spends the lowest cost to Get the highest profit Besides, it can also be perfectly in dredging work of port construction and navigation channel maintenance with flexible operation. It can dredge sand, mud, clay, silt or other sediment in the water bed for passing vessel. Configuration of Cumins diesel engine ( Otherwise can provide carter Weichai and others diesel engine brand )Shijiazhuang slurry pump and hydraulic pump from the America or Germany . all configurations can reach the low failure low fuel consumption high capacity and high efficiency. |
| Simple to introduce the principle : Hydraulic cutter head rate to add the solid concentration. mixture through the suction pipe into the discharge pipe by the pressure pump to arrived the destination .( power is from hydraulic electric or both together) |
5.Parameter for basic model :
| Model | Sand and solid capacity | Max. dredging depth | Discharge distance |
| PT200 | 160m3/h | 8m | 800m |
| PT250 | 200 m3/h | 9m | 1000m |
| PT 300 | 300 m3/h | 10m | 1200m |
| PT 350 | 400 m3/h | 11m | 1500m |
| PT 400 | 500 m3/h | 13m | 1500m |
| PT 450 | 600 m3/h | 14m | 1500m |
| PT 500 | 800 m3/h | 15m | 2000m |
| PT 550 | 900 m3/h | 16m | 2000m |
| PT 600 | 1100 m3/h | 16m | 2000m |
| PT 650 | 1200 m3/h | 16m | 2100m |
| PT 700 | 1400 m3/h | 17m | 2200m |
| QH800 | 1500 m3/h | 17m | 2500m |
| Remark: Set sail cutter suction dredger can offer the water flow from 800 cubic meter to 30000 cubic meter .also according to customers requirement to customized all standard and non standard dredging cutter suction dredger with the other power cutter suction dredger | |||
